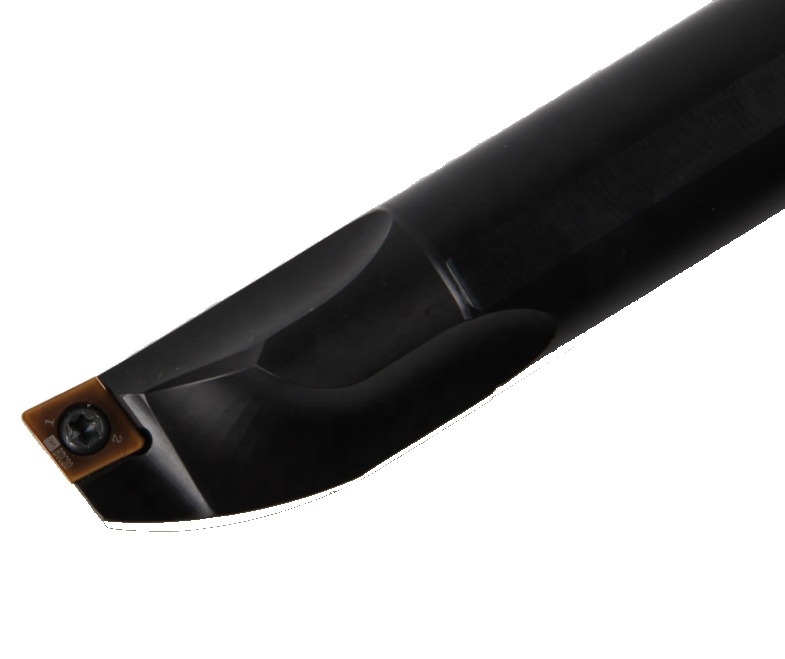

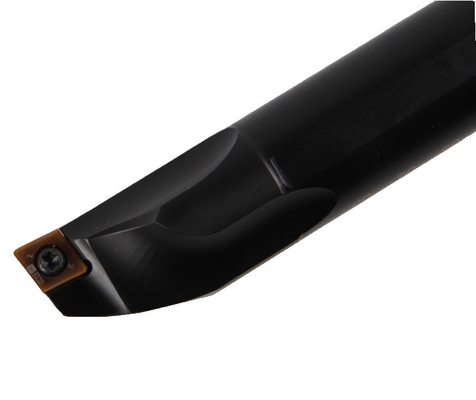

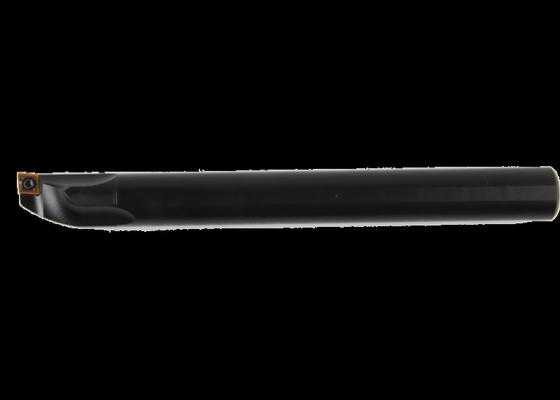

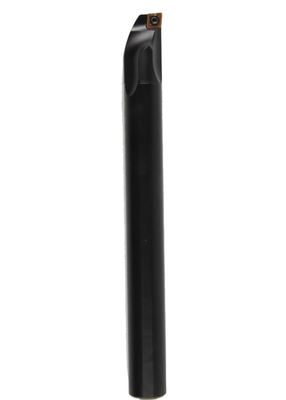

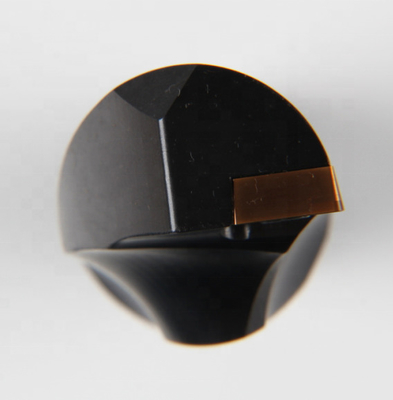

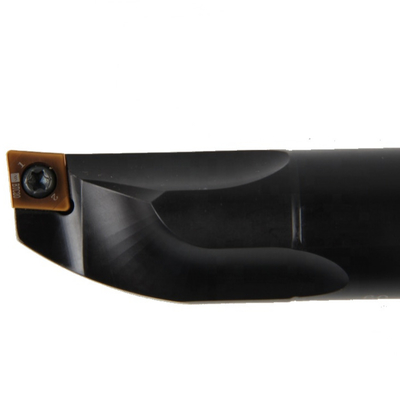

YAMADA CBN-1 Coated Super Hard PCBN Turning Tool with Straight Shank
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | YAMADA, YAMADA |
| Certification: | ISO14001:2015 , ISO9001:2015, ISO9001, ISO14001 |
| Model Number: | CBN-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1.0 piece |
|---|---|
| Packaging Details: | For CBN insert, 1pc, 2pcs,5pcs or 10 pcs per plastic box For lathe tool,1 pc per box |
| Supply Ability: | 2000 Piece/Pieces per Month machine |
|
Detail Information |
|||
| Warranty: | 3 Years | Customized Support: | OEM, ODM |
|---|---|---|---|
| Place Of Origin: | Shanghai, China | Brand Name: | YAMADA |
| Model Number: | CBN-1 | Usage: | Turning Tool |
| Hardness: | Super Hard | Coating: | Coated |
| Insert: | PCBN | Brand: | YAMADA |
| Product Name: | CBN Insert Turning Tool/Lathe Tool | Material Supplier: | GE And E6 |
| Certification: | ISO14001:2015 , ISO9001:2015, ISO9001, ISO14001 | MOQ: | 1 Pc |
| Delivery Time: | 15 Days | Tool Shank: | Straight Shank |
| OEM: | Welcome | Applicated Workpiece: | Cast Iron, Gray Iron,hardened Steel |
Product Description
Product use
We provide all kinds of standard and non-standard inserts according to your requirements or drawings, welcome your inquiries for accurate quotation.
| PCD | ||||||
| appearance | shape | type | inscribed circle | thickness | Radius | Inner hole demeter |
| |
TNMM | TNMM160404 | 9.525 | 4.76 | 0.4 | 3.81 |
| TNMM160408 | 0.8 | |||||
| TNMM160412 | 1.2 | |||||
| TCGW | TCGW110302 | 6.35 | 3.18 | 0.2 | 3.4 | |
| TCGW110304 | 0.4 | |||||
| TCGT | TCGT110202 | 6.35 | 2.38 | 0.2 | 2.8 | |
| TCGT110204 | 0.4 | |||||
| TCMT080202 | 4.76 | 2.38 | 0.2 | 2.4 | ||
| TCMT080204 | 0.4 | |||||
| TCMT090202 | 5.56 | 2.38 | 0.2 | 2.8 | ||
| TCMT090204 | 0.4 | |||||
| TCMT110301 | 6.35 | 3.18 | 0.1 | 3.4 | ||
| TCMT110302 | 0.2 | |||||
| TCMT110304 | 0.4 | |||||
| TPGW | TPGW080202 | 4.76 | 2.38 | 0.2 | 2.4 | |
| TPGW080204 | 0.4 | |||||
| TPGW090202 | 5.56 | 2.38 | 0.2 | 2.8 | ||
| TPGW090204 | 0.4 | |||||
| TPGW110302 | 6.35 | 3.18 | 0.2 | 3.4 | ||
| TPGW110304 | 0.4 | |||||
| TPGW160404 | 9.525 | 4.76 | 0.4 | 4.4 | ||
| TPGW160408 | 0.8 | |||||
| TPGW160412 | 1.2 | |||||
| TPGT | TPGT110302 | 6.35 | 3.18 | 0.2 | 3.4 | |
| TPGT110304 | 0.4 | |||||
| TPGN | TPGN090204 | 5.56 | 2.38 | 0.4 | / | |
| TPGN090208 | 0.8 | |||||
| TPGN110302 | 6.35 | 3.18 | 0.2 | / | ||
| TPGN110304 | 0.4 | |||||
| TPGN110308 | 0.8 | |||||
| TPGN160302 | 9.525 | 3.18 | 0.2 | / | ||
| TPGN160304 | 0.4 | |||||
| TPGN160308 | 0.8 | |||||
| PCBN | |||||||
| appearance | shape | type | No of cutting edges | inscribed circle | thickness | Radius | Inner hole demeter |
| |
TNGA | X-TNGA160404 | 1 3 6 | 9.525 | 4.76 | 0.4 | 3.81 |
| X-TNGA160408 | 0.8 | ||||||
| X-TNGA160412 | 1.2 | ||||||
| X-TNGA160416 | 1.6 | ||||||
| TCGW | X-TCGW090202 | 1 | 5.56 | 2.38 | 0.2 | 2.8 | |
| X-TCGW090204 | 0.4 | ||||||
| X-TCGW110202 | 1 | 6.35 | 2.38 | 0.2 | 2.8 | ||
| X-TCGW110204 | 0.4 | ||||||
| TPGW | X-TPGW080202 | 1 | 4.76 | 2.38 | 0.2 | 2.3 | |
| X-TPGW080204 | 0.4 | ||||||
| X-TPGW090202 | 1 | 5.56 | 2.38 | 0.2 | 2.8 | ||
| X-TPGW090204 | 0.4 | ||||||
| X-TPGW090208 | 0.8 | ||||||
| X-TPGW110302 | 1 | 6.35 | 3.18 | 0.2 | 3.4 | ||
| X-TPGW110304 | 0.4 | ||||||
| X-TPGW110308 | 0.8 | ||||||
| X-TPGW160304 | 1 3 | 9.525 | 3.18 | 0.4 | 4.4 | ||
| X-TPGW160308 | 0.8 | ||||||
| X-TPGW160404 | 1 3 | 9.525 | 4.76 | 0.4 | 4.4 | ||
| X-TPGW160408 | 0.8 | ||||||
| TPGN | X-TPGN110304 | 1 | 6.35 | 3.18 | 0.4 | / | |
| X-TPGN110308 | 0.8 | ||||||
| X-TPGN160304 | 1 3 | 9.525 | 3.18 | 0.4 | / | ||
| X-TPGN160308 | 0.8 | ||||||
ISO9001,ISO14001
Packaging: Plastic box
Rose plastic cases protect tools perfectly
All products well package with or without labels
Customers requirement lables are accepted
Shipping Time: 5-7 working days
Shipping Method: DHL, UPS, FEDEX, EMS etc
CIMT2019
1.Are you factory?
Yes,we are
2.Where are your factory?
We are in Shanghai.
3.Could we visit your factory.
Sure.Our address is here:
NO.265 ZhanglianT ang Road,Qingpu District,Shanghai, P.R. China 201716
4.How long is your delivery time?
General 20 days,but we can promote more if you're very urgent.
5.How could I get your quotation?
We really need your drawings or samples
6.How about your aftersale service?
Our sales team will not stop to help you once we begin the business.
7.Could we begin the business at low quantity.
Absolutely.We always think that it is a chance for us and very cherish your friendship.
