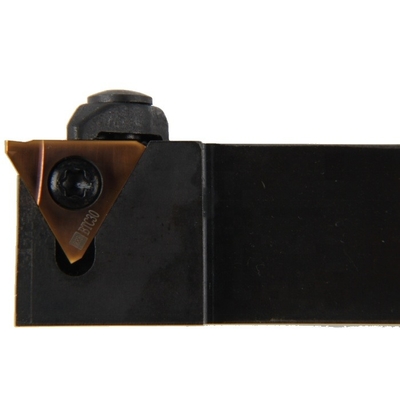

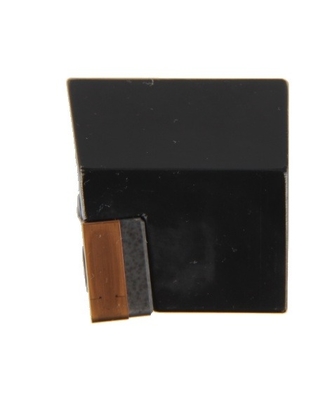

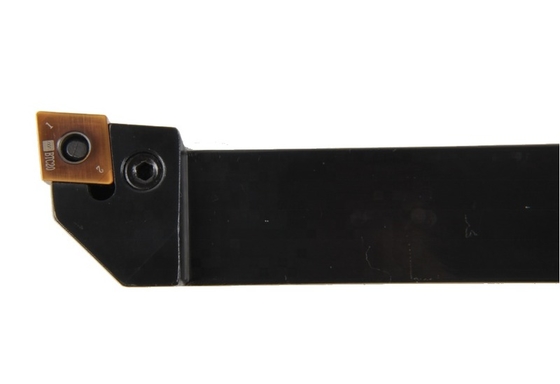

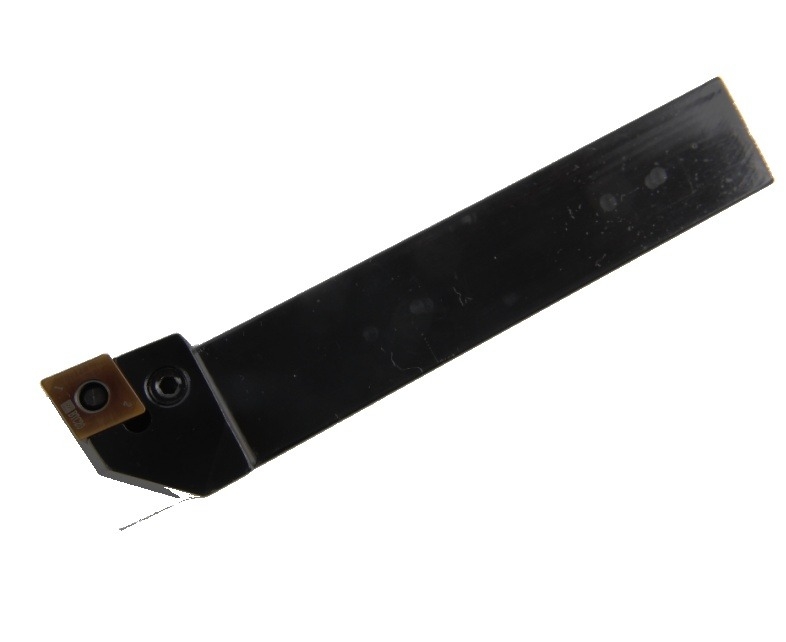

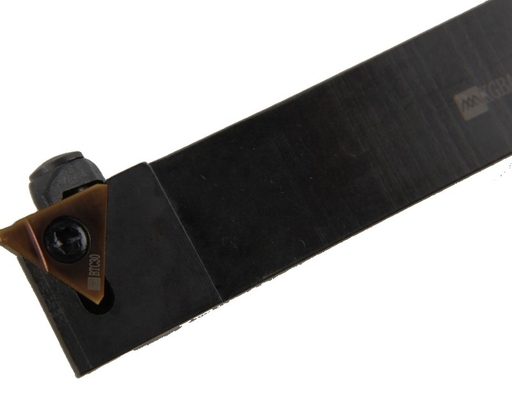

Superhard PCBN Blade for Turning Steel After Heat Treatment OEM
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Shanghai Yamada |
| Certification: | ISO14001:2015 , ISO9001:2015, ISO9001, ISO14001 |
| Model Number: | CBN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2.0 pieces |
|---|---|
| Packaging Details: | 1 pc per plastic box and several into a carton |
| Supply Ability: | 2000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3 Years | Customized Support: | OEM, ODM |
|---|---|---|---|
| Place Of Origin: | Shanghai, China | Brand Name: | Shanghai Yamada |
| Model Number: | CBN | Usage: | External Turning Tool |
| Hardness: | Superhard | Coating: | Non-coating |
| Insert: | Pcd/pcbn | HRC: | 45-65 |
| Precision Tolerance: | ± 0.002mm | Material Supplier: | GE And E6 |
| Certification: | ISO14001:2015 , ISO9001:2015, ISO9001, ISO14001 | Samples: | Available |
| Production Time: | 15 Days | Reamer Shank: | Straight Shank |
| Machining: | Continue Or Interrupt | Applications: | Auto Parts,auto Engine,aerospace,military Industry |
Product Description
Application
We provide all kinds of standard or non-standard PCD/PCBN inserts,please tell us ISO code or offer drawings to us.
| PCD | ||||||
| appearance | shape | type | inscribed circle | thickness | Radius | Inner hole demeter |
|
TNMM | TNMM160404 | 9.525 | 4.76 | 0.4 | 3.81 |
| TNMM160408 | 0.8 | |||||
| TNMM160412 | 1.2 | |||||
| TCGW | TCGW110302 | 6.35 | 3.18 | 0.2 | 3.4 | |
| TCGW110304 | 0.4 | |||||
| TCGT | TCGT110202 | 6.35 | 2.38 | 0.2 | 2.8 | |
| TCGT110204 | 0.4 | |||||
| TCMT080202 | 4.76 | 2.38 | 0.2 | 2.4 | ||
| TCMT080204 | 0.4 | |||||
| TCMT090202 | 5.56 | 2.38 | 0.2 | 2.8 | ||
| TCMT090204 | 0.4 | |||||
| TCMT110301 | 6.35 | 3.18 | 0.1 | 3.4 | ||
| TCMT110302 | 0.2 | |||||
| TCMT110304 | 0.4 | |||||
| TPGW | TPGW080202 | 4.76 | 2.38 | 0.2 | 2.4 | |
| TPGW080204 | 0.4 | |||||
| TPGW090202 | 5.56 | 2.38 | 0.2 | 2.8 | ||
| TPGW090204 | 0.4 | |||||
| TPGW110302 | 6.35 | 3.18 | 0.2 | 3.4 | ||
| TPGW110304 | 0.4 | |||||
| TPGW160404 | 9.525 | 4.76 | 0.4 | 4.4 | ||
| TPGW160408 | 0.8 | |||||
| TPGW160412 | 1.2 | |||||
| TPGT | TPGT110302 | 6.35 | 3.18 | 0.2 | 3.4 | |
| TPGT110304 | 0.4 | |||||
| TPGN | TPGN090204 | 5.56 | 2.38 | 0.4 | / | |
| TPGN090208 | 0.8 | |||||
| TPGN110302 | 6.35 | 3.18 | 0.2 | / | ||
| TPGN110304 | 0.4 | |||||
| TPGN110308 | 0.8 | |||||
| TPGN160302 | 9.525 | 3.18 | 0.2 | / | ||
| TPGN160304 | 0.4 | |||||
| TPGN160308 | 0.8 | |||||
| PCBN | |||||||
| appearance | shape | type | No of cutting edges | inscribed circle | thickness | Radius | Inner hole demeter |
|
TNGA | X-TNGA160404 | 1 3 6 | 9.525 | 4.76 | 0.4 | 3.81 |
| X-TNGA160408 | 0.8 | ||||||
| X-TNGA160412 | 1.2 | ||||||
| X-TNGA160416 | 1.6 | ||||||
| TCGW | X-TCGW090202 | 1 | 5.56 | 2.38 | 0.2 | 2.8 | |
| X-TCGW090204 | 0.4 | ||||||
| X-TCGW110202 | 1 | 6.35 | 2.38 | 0.2 | 2.8 | ||
| X-TCGW110204 | 0.4 | ||||||
| TPGW | X-TPGW080202 | 1 | 4.76 | 2.38 | 0.2 | 2.3 | |
| X-TPGW080204 | 0.4 | ||||||
| X-TPGW090202 | 1 | 5.56 | 2.38 | 0.2 | 2.8 | ||
| X-TPGW090204 | 0.4 | ||||||
| X-TPGW090208 | 0.8 | ||||||
| X-TPGW110302 | 1 | 6.35 | 3.18 | 0.2 | 3.4 | ||
| X-TPGW110304 | 0.4 | ||||||
| X-TPGW110308 | 0.8 | ||||||
| X-TPGW160304 | 1 3 | 9.525 | 3.18 | 0.4 | 4.4 | ||
| X-TPGW160308 | 0.8 | ||||||
| X-TPGW160404 | 1 3 | 9.525 | 4.76 | 0.4 | 4.4 | ||
| X-TPGW160408 | 0.8 | ||||||
| TPGN | X-TPGN110304 | 1 | 6.35 | 3.18 | 0.4 | / | |
| X-TPGN110308 | 0.8 | ||||||
| X-TPGN160304 | 1 3 | 9.525 | 3.18 | 0.4 | / | ||
| X-TPGN160308 | 0.8 | ||||||
]
Packaging: Plastic box
Rose plastic cases protect tools perfectly
All products well package with or without labels
Customers requirement lables are accepted
Shipping Time: 5-7 working days
Shipping Method: DHL, UPS, FEDEX, EMS etc
1.Are you factory?
Yes,we are
2.Where are your factory?
We are in Shanghai.
3.Could we visit your factory.
Sure.Our address is here:
NO.265 ZhanglianT ang Road,Qingpu District,Shanghai, P.R. China 201716
4.How long is your delivery time?
General 20 days,but we can promote more if you're very urgent.
5.How could I get your quotation?
We really need your drawings or samples
6.How about your aftersale service?
Our sales team will not stop to help you once we begin the business.
7.Could we begin the business at low quantity.
Absolutely.We always think that it is a chance for us and very cherish
your friendship.
24 hrs service,welcome to contact us if you have any questions.
